Single-Robot Multi-Station System

Efficient · Flexible · Intelligent Interconnection, optimal solution for multi-process press lines

Multi-Station Press Robot

Servo-driven, with a hanging arm and main bar achieving synchronized multi-station transfer, equal distances between gripping arms and stations, completing multi-process handling in one cycle, significantly enhancing automation efficiency.

Transfer direction Left to Right / Right to Left

Cycle Time Max 20~25 pcs/min

X-axis Travel 0~1000mm

Z-axis Lift 0~90mm

Material sheet transfer size Max 600×200mm

Pick-up Method Vacuum gripper / electromagnetic

Pick-up Station Number Customized according to die station

operation method Color HMI

Immediate consultation Get a Quote

Product Details

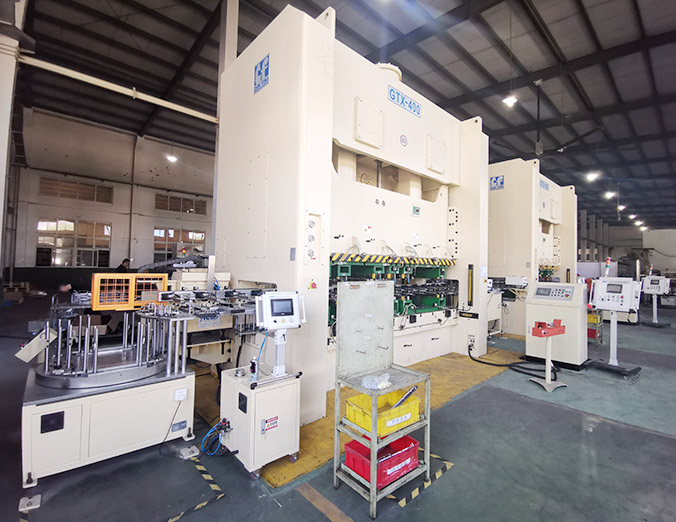

The single-bar multi-station stamping transfer robot adopts servo drive, with the arm suspended and working with the main Bar to achieve workpiece transfer between stations. The distance between each gripping arm and the station spacing are equal; the gripping arms can synchronously translate along the X-axis of the dual main Bars by one station pitch, moving the workpiece from one station to the next, thereby improving automation levels.

Line function description: The front end of the line can use sheet metal or 3-in-1 feeder; robot gripping uses vacuum suction cups or electromagnets; each arm is equipped with sensors for automatic shutdown and alarm upon material depletion; signal lines and pneumatic circuits are arranged along floor-mounted cable trays for safety and neatness; non-standard customization available based on customer products.

technical parameters

Transfer direction	From Left to Right (From Right to Left)
Feeder Line Height	Dependent on customer requirements
operation method	Color HMI
X-Axis Forward Travel	0~1000mm
Z-axis lifting stroke	0~90mm
Material sheet transfer size	Max:600×200mm
Pick-up Station Number	Customized according to die stations
Pick-up Method	Vacuum suction cup/electromagnetic iron
Cycle Time	Max 20~25 pcs/min (Specifically subject to process conditions)
Special specifications	non-standard customization
