Press robot series
High flexibility · High cycle rate · Modular design, meeting stamping, forging, and multi-machine line automation requirements
Smart press robot · Empowering manufacturing upgrades
Wuxi Qigong Intelligence Machinery Co., Ltd. focuses on the R&D and manufacturing of stamping automation press robots, offering four-axis swing arm press robots, single-machine multi-station press robots, 3-axis multi-station stamping press robots, standalone/large standalone press robots, single-bar multi-machine linking press robots, and gantry transfer robots. Suitable for industries such as home appliances, automotive parts, and 3C electronics, it helps customers improve production efficiency and product consistency.

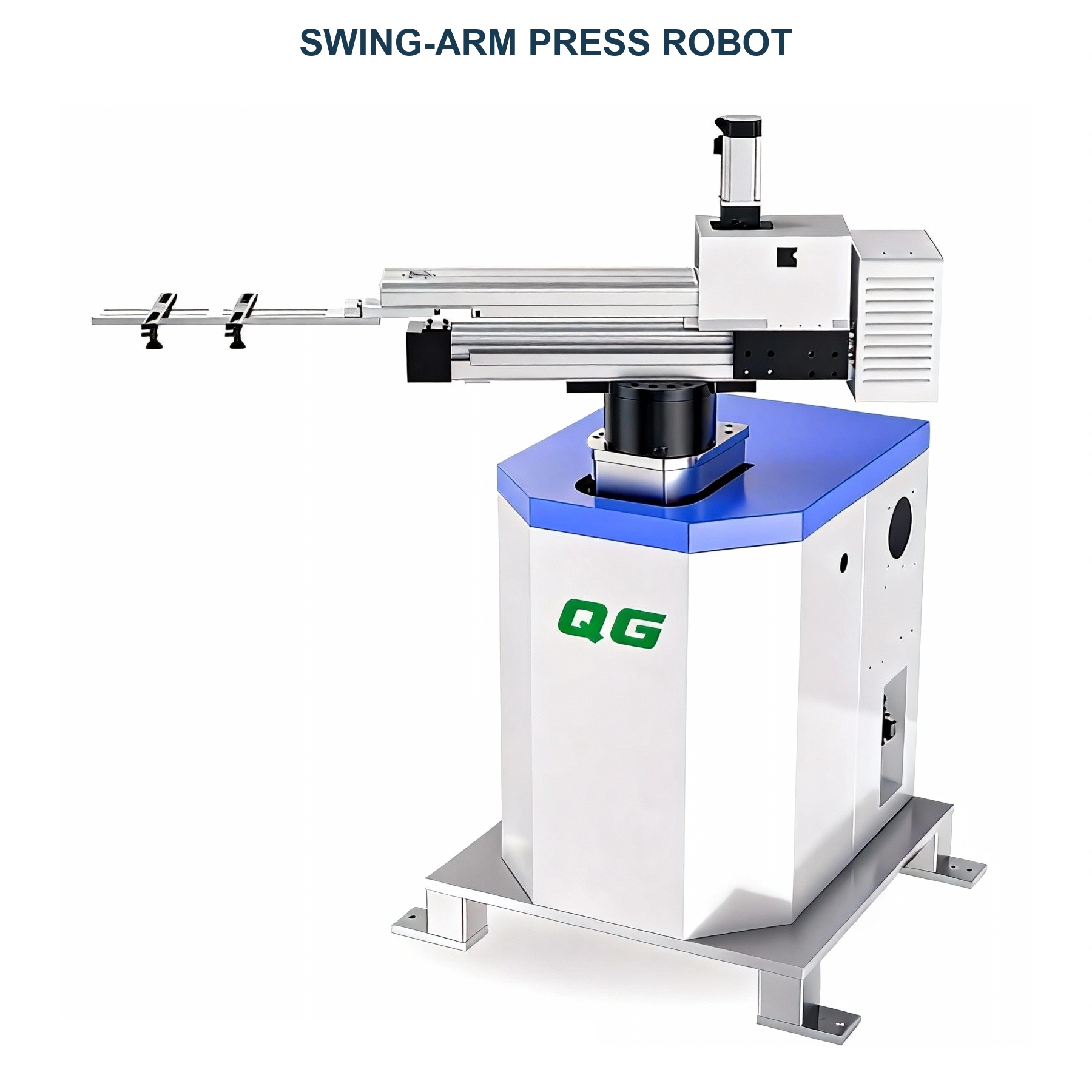

4-Axis Swing-Arm Press Robot
Combination of swinging and linear movement trajectories, completing pick-and-place operations between multiple stations, avoiding interference in mold opening/closing spaces; color human-machine interface, recipe adjustable, suitable for multi-process stamping and multi-machine linkage.
- Drive: Four-axis servo linkage (travel and angle programmable)
- Linear transfer and vertical stroke: customized according to press and line specifications
- Pick-up Method: Vacuum Suction Cup / Electromagnet
- Control: touch screen HMI, can be synchronized with press cycle
Single-Robot Multi-Station System
Integrated multi-station design, through servo control, achieves rapid material transfer between multiple stations, suitable for stamping continuous die production lines, significantly reducing equipment investment and maintenance costs, and facilitating changeovers.
- Station number: 2~6 stations customizable
- Load Capacity: 5kg~50kg
- Maximum cycle rate: 30 cycles/min
- Control system: EtherCAT bus + handheld teaching device
3-Axis Multi-Station Press Robot
Using X/Y/Z-axis servo drives, achieve three-dimensional space transfer of workpieces, particularly suitable for large sheet metal continuous stamping lines, improving mold utilization and production stability.
- Transfer travel: X-axis 2000mm / Y-axis 400mm
- Repeatability accuracy: ±0.1mm
- Press tonnage compatibility: 200T~1250T
- Communication interface: Profinet/CC-Link
Standalone Press Robot
Each press is paired with an independent robot for automatic loading and unloading, suitable for multi-variety small-batch production, easy installation, and quick setup of press lines.
- Arm type: swinging arm / linkage arm available
- Load: 10kg~80kg
- Pick-up method: vacuum suction cup / electromagnetic iron / gripper
- HMI: 7-inch touch screen, parameter recipe storage
Heavy-Duty Standalone Robot
Reinforced machine design, combined with high-power servo system, easily handles automatic handling of heavy automotive outer panels, large home appliance panels, etc.
- Maximum load: 150kg
- Reach range: 2000mm
- Drive Method: Directly Connected Servo Motors
- Safety Protection: Collision Detection + Area Light Curtains
Single-Bar Multi-Press Transfer Robot
Using single-bar linear motion mechanism, connecting multiple press machines, achieving rapid workpiece transfer, especially suitable for multi-process press lines, high synchronization accuracy.
- Number of press machines connected: 3~8 units
- Transfer Stroke: Up to 2500mm
- Pick-and-place time: ≤4.5 seconds/cycle
- Teaching Method: Offline Programming + Teaching Pendant
Gantry Robot
Modular gantry structure, beam + column combination, suitable for CNC loading/unloading, large press line material handling, strong load-bearing capacity, precise positioning.
- X-axis travel: ≤10 meters (multi-segment splicing)
- Control method: synchronized interpolation control
- Load Capacity: 300kg max
- End-of-arm tooling: Automatic tool changer
Robot Core Advantages & Technical Features
