Standalone Press Robot

Large press machine connection · Dual servo drive · Expert in large workpiece handling

Standalone Press Robot

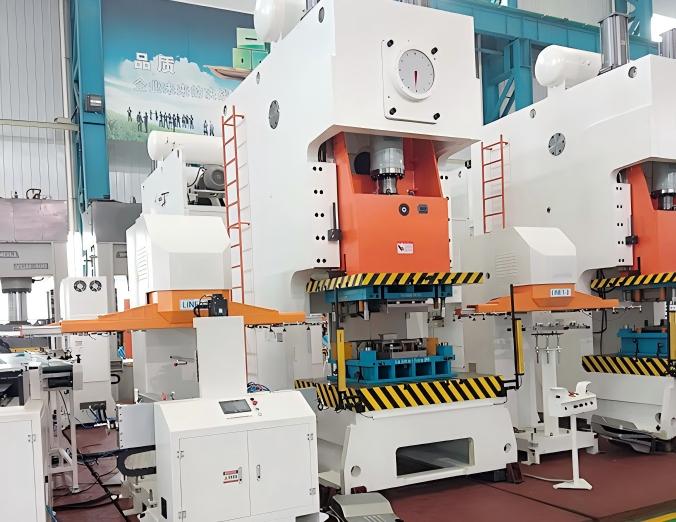

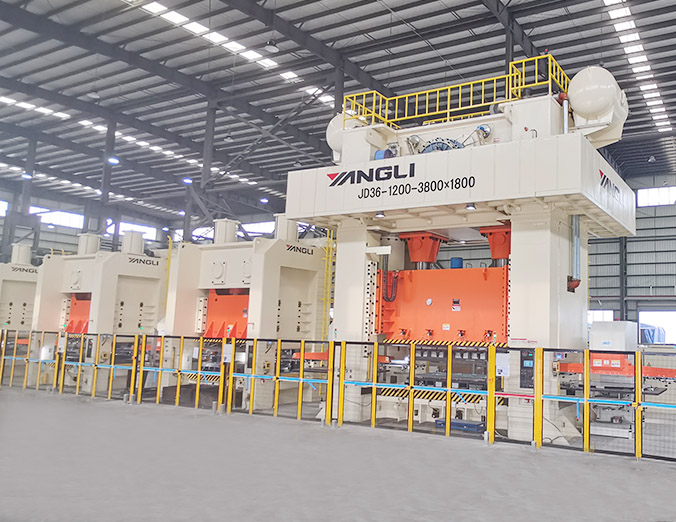

Standalone press robots are suitable for online production with large stamping presses, working in conjunction with dual-station servo material racks. This robot uses dual servo motor drive, with the arm suspended and connected to the main bar via servo motor transmission, enabling workpiece transfer between stations. The distance between arms equals the station spacing. The gripping arm translates along the X-axis of the main bar by one station pitch, moving the workpiece from one station to the next, thereby enhancing automation levels.

Transfer direction Left to Right / Right to Left

Feeder Line Height Customized according to customer needs

X-Axis Forward Travel 4000mm

Z-axis lifting stroke 0~250mm

Material sheet transfer size Max 2500×1500mm / Min 350×350mm

Maximum load per suction arm 20KG

Pick-up Method Vacuum gripper / electromagnetic

Operating Cycle One cycle 3S

Immediate consultation Get a Quote

Product Details

The standalone press robot is suitable for large press machine online production, working in conjunction with dual-station servo material racks. This robot uses dual servo motor drives; its arm suspension and main bar are driven by servo motors to transfer workpieces between stations. The distance between arms equals the station spacing. The gripping arm translates along the X-axis of the main bar by one station pitch, moving the workpiece from one station to the next, thereby increasing the degree of automation.

Structural Features: The suction arm aluminum profile features slotted openings, allowing the arm to adjust according to workpiece size; gripping uses vacuum cups, with safety frames and sound-light alarm devices as related safety measures at the tail; each arm of the press robot is equipped with a sensor detection device. It is particularly suitable for large-size material handling (such as TV back panels, new energy battery plates).

technical parameters

Transfer direction	From Left to Right (From Right to Left)
Feeder Line Height	Dependent on customer requirements
operation method	True color HMI
X-Axis Forward Travel	4000mm
X-Axis Forward Drive	Servo Drive + Gear Rack
Z-axis lifting stroke	0~250mm
Z-axis gripping drive	Servo Drive + High Precision Screw
Maximum Load of Single Suction Arm	20KG
Material sheet transfer size	Max:2500×1500mm / Min:350×350mm
control method	Servo PLC program
Suction Feeding Method	Vacuum suction cup/electromagnetic iron
Operating Cycle	One cycle 3S
