Compact Standalone Robot Series

Flexible Deployment · High Efficiency · Stable · Preferred for Old Equipment Automation Upgrade

Compact Standalone Robot Series

With years of experience in stamping automation applications, combined with a strong execution team and industry responsibility, the company's automation products are now widespread domestically and exported to numerous countries and regions. The small standalone press robot is compact and easy to install, particularly suitable for automating small presses and upgrading old equipment.

Transfer direction Left to Right / Right to Left

Feeder Line Height Customized according to customer needs

X-Axis Forward Travel Based on the center distance of the press (suitable for small and medium presses)

Z-axis lifting stroke 0~90mm (Expandable)

Material sheet transfer size Max 800×600mm (customizable)

Pick-up Station Number Customized according to die station

Pick-up Method Vacuum gripper / electromagnetic

Cycle Time Max 15~20 pcs/min (Subject to process conditions)

control method Color HMI

Operating Voltage AC 380V 50Hz

Special specifications non-standard customization

Immediate consultation Get a Quote

Product Details

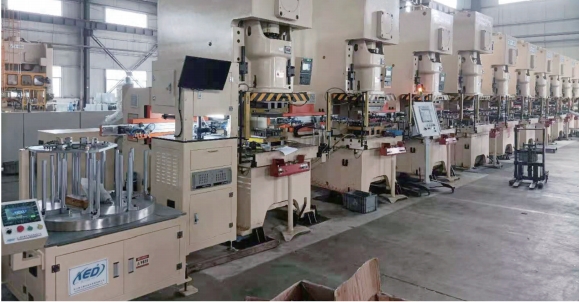

The small standalone press robot series is designed for lightweight, high-efficiency stamping automation. The entire machine adopts a modular structure, making installation and maintenance simple, with rapid deployment possible in single-press or multi-machine linked scenarios. Coupled with advanced servo drive technology, it achieves precise positioning and high-speed handling, significantly boosting production efficiency.

application advantages: Suitable for precision stamping parts such as home appliance panels, 3C electronics, and automotive small parts; supports vacuum suction cups/magnets for material retrieval; intelligent control system, one-button switching of product parameters; optional material racks, turnover machines, and other peripheral equipment to build complete automation lines.

technical parameters

Transfer direction	From Left to Right (From Right to Left)
Feeder Line Height	Dependent on customer requirements
operation method	Color HMI
X-Axis Forward Travel	Based on Press Center Distance (Typically Used for Small and Medium Press Lines)
Z-axis lifting stroke	0~90mm (Expandable)
Material sheet transfer size	Max 800×600mm (customizable)
Pick-up Station Number	Customized according to die stations
Pick-up Method	Vacuum gripper / electromagnetic
Cycle Time	Max 15~20 pcs/min (depending on press, die, and stroke)
power supply	AC 380V 50Hz
Special specifications	non-standard customization
