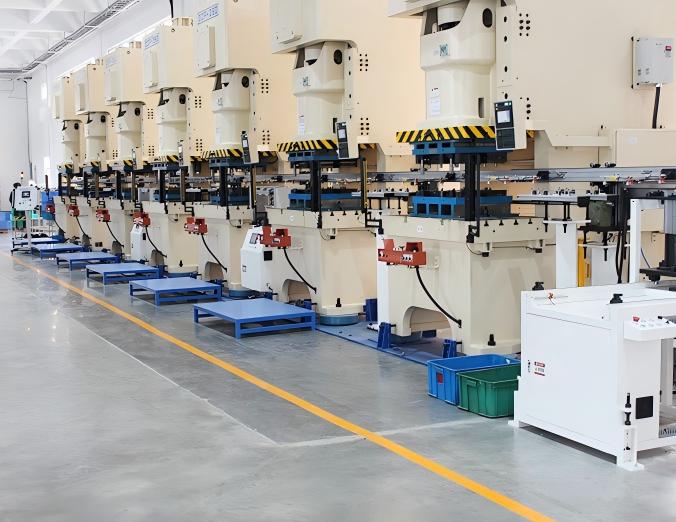

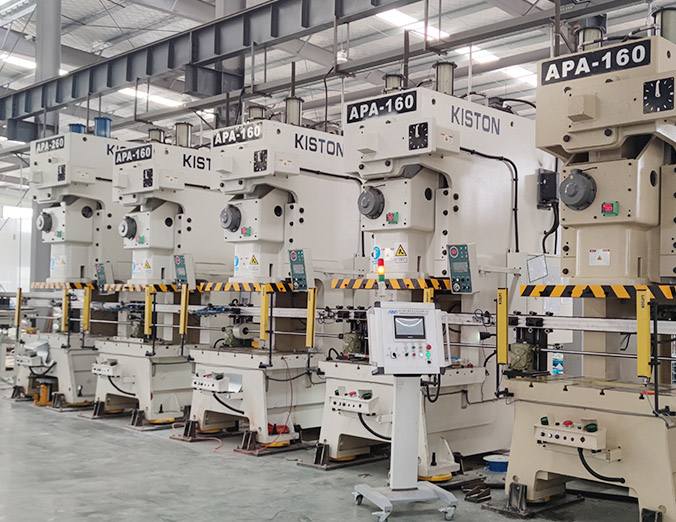

Single-Bar Multi-Press Transfer Robot

The single-bar multi-machine connection transfer robot adopts servo drive, with the arm suspended and working with the main Bar to achieve workpiece transfer between stations. The distance between each gripping arm and the station spacing are equal; the gripping arms can synchronously translate along the X-axis of the dual main Bars by one station pitch, moving the workpiece from one station to the next, thereby improving automation levels.

Line function description: The front end of the line can use sheet material or a 3-in-1 feeder; the robot uses vacuum suction cups or electromagnets for gripping; each arm is equipped with sensors for automatic shutdown and alarm upon material shortage; signal lines and pneumatic lines are arranged along floor cable trays for safety and neatness; it can be customized non-standardly according to customer products to achieve efficient linking of multiple stamping equipment.
